RAM Mounts X-Grip® Large Phone Mount with Handlebar U-Bolt Base

Ram X-Grip® Large Phone Mount with Handlebar U-Bolt Base

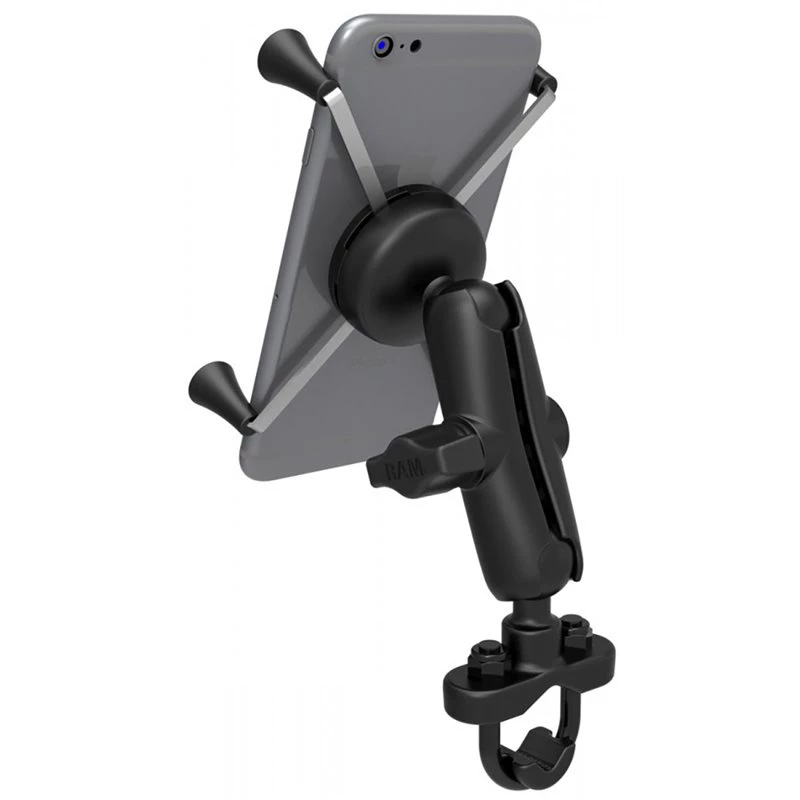

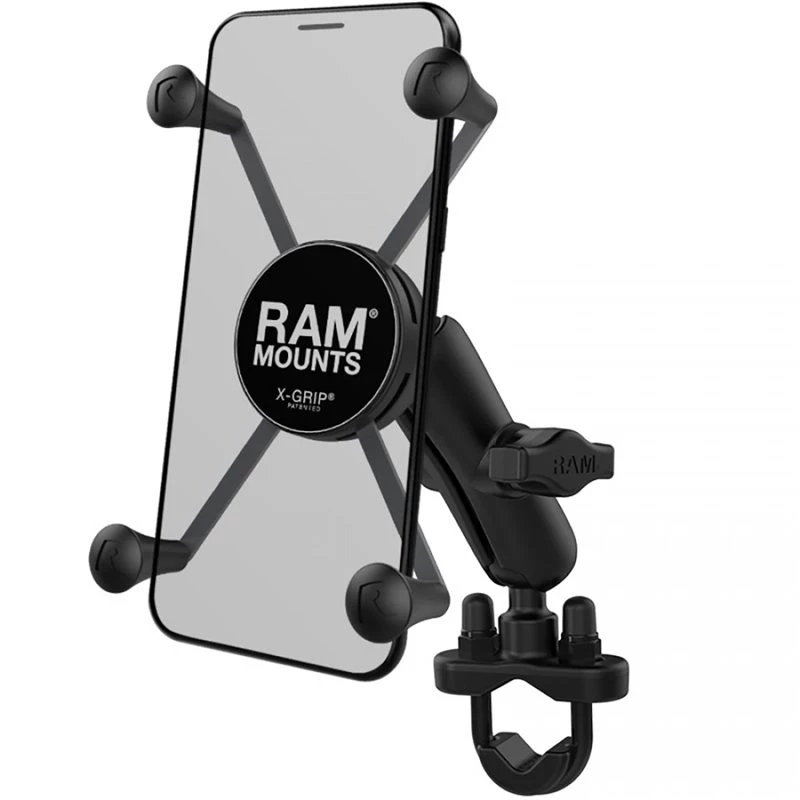

Ideal for handlebars, the RAM-B-149Z-UN10 consists of a zinc-coated U-bolt base, medium length double socket arm, and the popular spring-loaded RAM® X-Grip® large phone holder. In addition, hardware is included to accommodate rails from .5″ – 1.25″ in diameter. The RAM® X-Grip® features an ‘X’ design that expands and contracts to provide a perfect fit for your device – even if it’s in a case. Made of powder-coated, marine-grade aluminium, stainless steel components, and high-strength composite, this large version of the RAM® X-Grip® fits phones ranging from 1.75″ to 4.5″ in width and keeps your device completely functional and accessible. RAM® ball and socket technology allows for near-infinite adjustability to achieve the ideal viewing angle – while also extending the life of your phone by providing shock and vibration damping. For outdoor applications, the RAM® X-Grip® includes a device tether that is recommended for added security and peace of mind.

Features:

• Spring-loaded ‘X’ design for large phones with rubber caps sports great holding power without hiding your phone; includes optional device tether for peace of mind during rugged use
• Includes U-bolt base that accommodates rails from .5″ to 1.25″ in diameter and a medium length, B size RAM® double socket arm; ball and socket technology allows for near-infinite adjustability
• Made of powder-coated, marine-grade aluminium, stainless steel components, and high-strength composite for durability and reliability in the most demanding environments
• Backed by a lifetime warranty

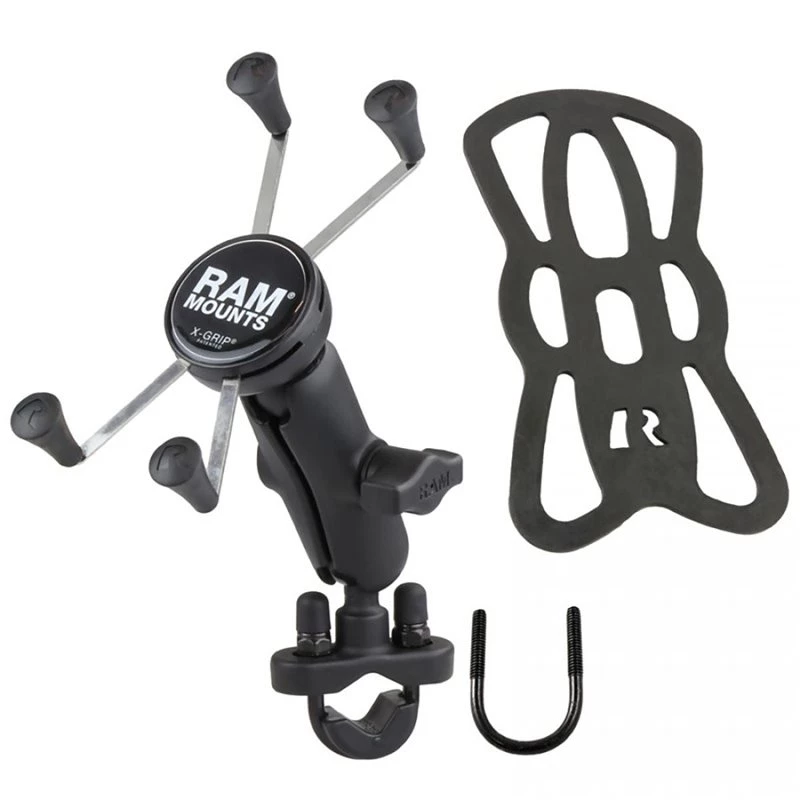

HARDWARE INCLUDED

(1) Optional Tether

(1) Glue Tube for Rubber Caps

(1) 1/4″-20 U-Bolt for .5″ – 1″ Rails

(1) 1/4″-20 U-Bolt for 1″ – 1.25″ Rails

(2) 1/4″-20 Nylock Nuts

(2) Rubber Caps

(1) U-Bolt Spacer

HOLDER DIMENSIONS

• Width Range: 1.75″ – 4.5″
• Depth Range: .875″ max

CLAMP RANGE

• .5″ – 1.25″ diameter

SOCKET-TO-SOCKET LENGTH

• 3″

BALL/SOCKET SIZE

• B Size (1″)

WEIGHT CAPACITY

• Standard Use: 900g
• Heavy-Duty Use: 450g

MATERIALS

• Marine-grade aluminium
• High strength composite
• Stainless steel

PACKAGING TYPE

• Poly Bag

WEIGHT

• 340g
