RAM Mounts Quick-Grip™ Waterproof Wireless Charging Suction Cup Mount

Ram Quick-Grip™ Waterproof Wireless Charging Suction Cup Mount

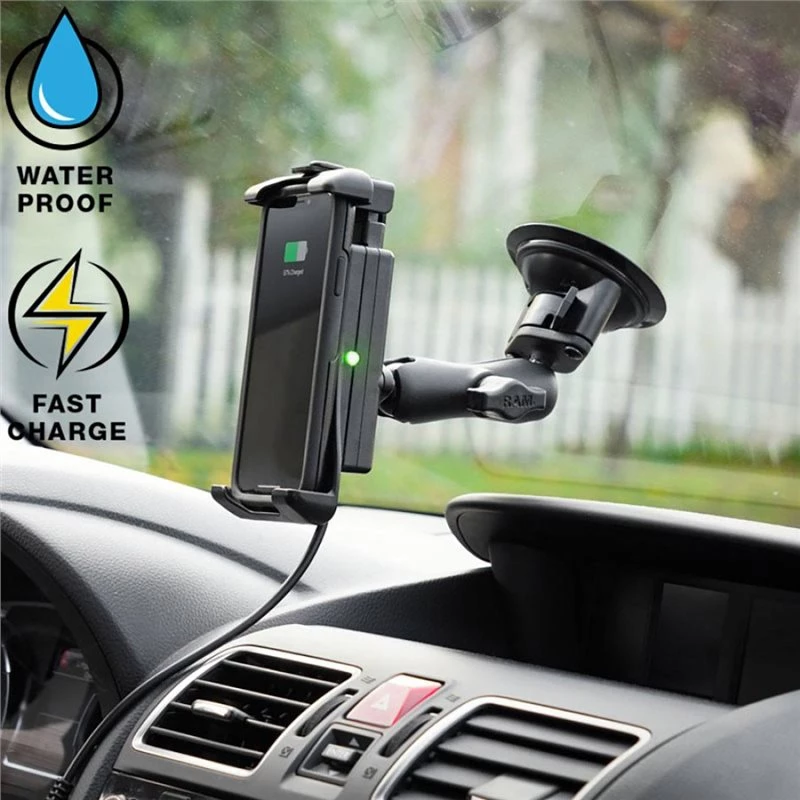

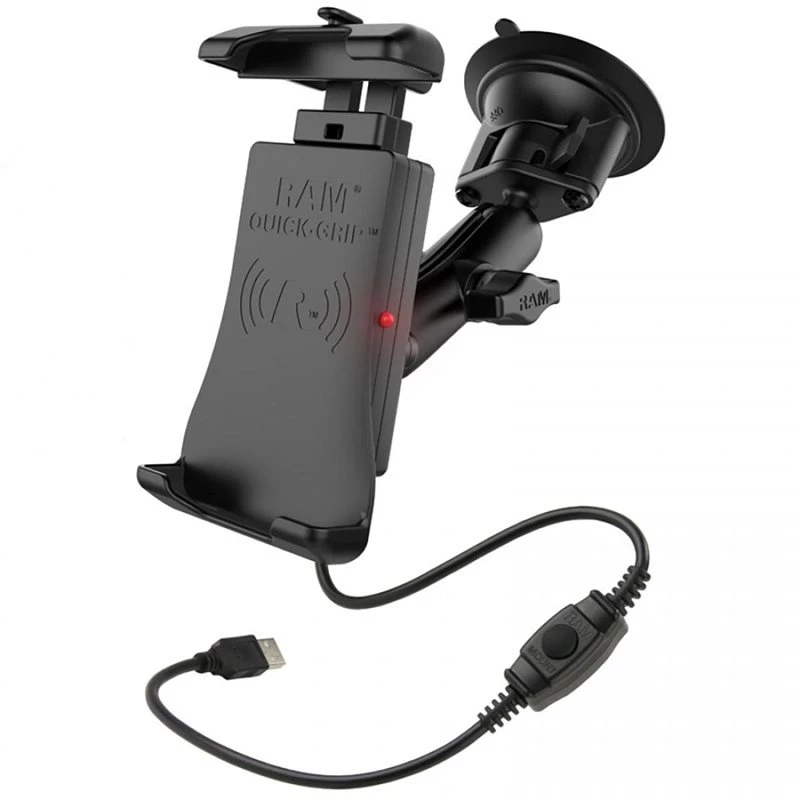

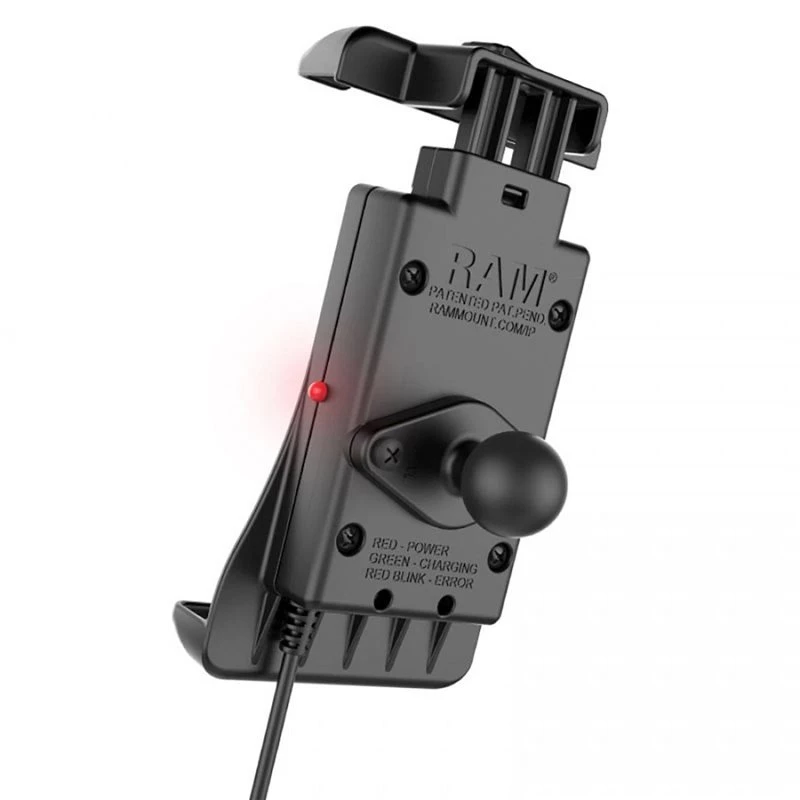

The RAM® Quick-Grip™ Wireless is a patented, universal waterproof wireless charging cradle for phones. As part of the spring-loaded RAM® Quick-Grip™ family, this cradle allows for single-handed placement and removal of your phone while taking advantage of Qi compatible wireless phone charging. Both the top and bottom cups feature rubber to help hold your phone firmly in place. To insert your device, use your phone to push the top cup upward and then gently place your device against the cradle for a secure fit. This Qi wireless charging cradle ensures your compatible phone charges as long as it’s within the listed compatible dimensions. For added security and peace of mind, a device tether is included that’s recommended for outdoor applications. This RAM® Quick-Grip™ Wireless suction cup kit includes a B size diamond base featuring a 1” rubber ball, medium length double socket arm, and RAM® Twist-Lock™ suction cup. The connected Type-A male pigtail connector features an in-line switch that allows you to turn off the wireless charging module when not in use. For in-vehicle charging, attach the pigtail to the included 1.2m Type-A male to Type-A female extension cable.

FEATURES

• Waterproof Qi compatible wireless phone charging cradle features spring-loaded RAM® Quick-Grip™ design and 10W maximum output

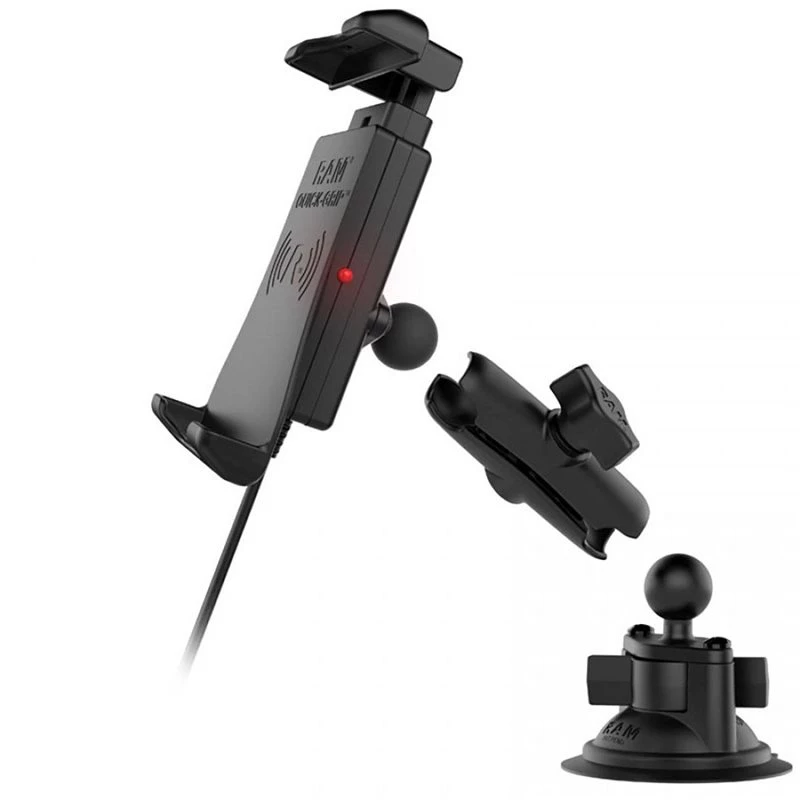

• Kit for vehicles includes wireless charging cradle, B size diamond ball base, medium double socket arm, and RAM® Twist-Lock™ suction cup
• Made of powder-coated, marine-grade aluminium, stainless steel components, and high-strength composite for durability and reliability in the most demanding environments
• RAM® Mounts backed by lifetime warranty, RAM® electronics backed by 1-year warranty with proof of purchase required

HARDWARE INCLUDED

• (1) Safety Tether

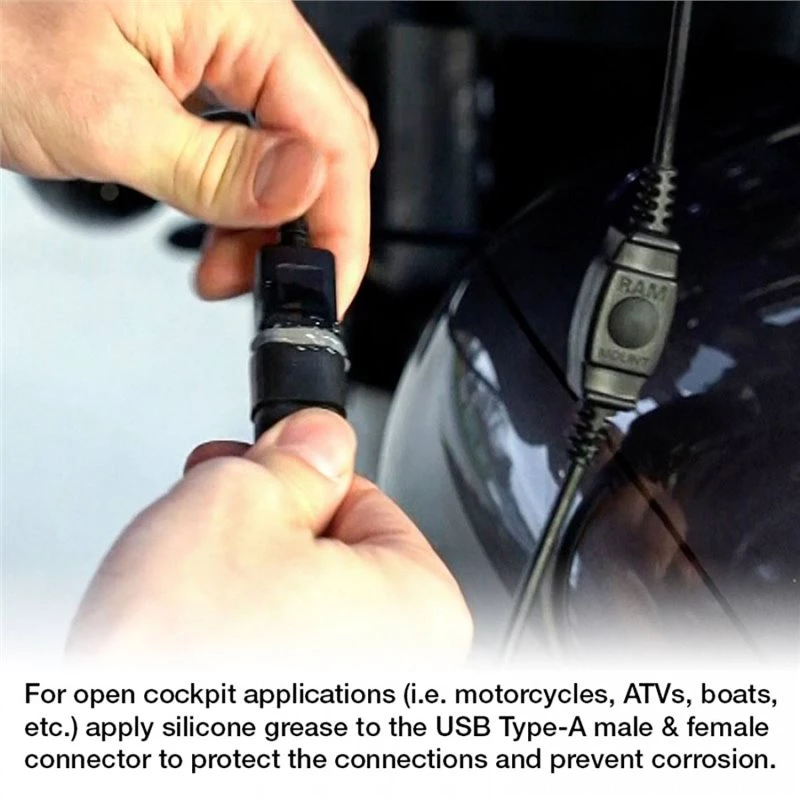

• (1) Silicon sleeve for USB waterproof connection
• (1) 1.2 Meter USB Extension Cable
• (4) Small zip ties
• (2) Large zip ties

HOLDER DIMENSIONS

• Height Range: 5.625″ – 6.625″
• Max Width: 3.125″
• Max Depth: .7″

SUCTION SIZE

• 3.3″ Diameter

SOCKET-TO-SOCKET LENGTH

• 3″

BALL/SOCKET SIZE

• B Size (1″)

WEIGHT CAPACITY

• Standard Use: 900g
• Heavy-Duty Use: 450g

MATERIALS

• Marine-grade aluminium
• High strength composite
• Stainless steel

PACKAGING TYPE

• Retail Box

POWER SPECIFICATIONS

• Input Power:5V-2A; 9V-1.67A
• Output: 5W / 7.5W / 10W
• Conversion Efficiency: 85% Max
• Maximum Case Thickness: 6mm
• Working Frequency: 110-205KHZ
• Product Standard: WPC v.1.2.4
• Qi Compatible
• Compatible with QC2.0/QC3.0 power supplies

INPUT CONNECTOR

• USB Type-A Male

INPUT CABLE LENGTH

• 20″ with optional 1.2M extension cable

COMPLIANCE

• Over current protection, short circuit protection and over temperature protection

CERTIFICATIONS

• FCC, IC, CE, e-Mark, WEEE, RCM, and RoHS Compliant

WEIGHT

• 750g

WARRANTY STATUS

• 1 year warranty

ADDITIONAL INFORMATION

Size of case may affect compatibility. Not compatible with phone cases containing metal. This holder will not charge phones that do not have built-in wireless charging capabilities, such as the Apple iPhone 7 or Samsung Galaxy S5.

Due to higher charging standards, iPhone 12 models may experience slow charging or depletion while running various battery draining apps.

ADDITIONAL INFORMATION

Exposure to vibrations, like those generated by high-powered motorcycle engines, might impact iPhone cameras.
